CBRN protection

Bio-bag EBV-30/40 IN/CH

Highly functional, isolation device is tested in practice in the most demanding conditions and is used to transport a person infected with a highly contagious disease or a person to whom it is necessary to ensure protection from the outer environment (typically in case of reduced immunity of the person). Over the years, the Bio-bag design solution has undergone several modifications, and its current form belongs to the best in this field.

Benefits:

  • Certification in accordance with ČSN EN 143/A1:2006, ČSN EN 12941:1999/A2:2009, ČSN EN 12942:1999/A2:2009
  • Produced by high-frequency welding technology
  • Large transparent windows allow monitoring of the patient's health inside the Bio-bag
  • 3 pairs of interchangeable gloves allowing basic procedures to be performed during the transport
  • reliable patient fixation system during the transport
  • self-supporting system of aluminium frame with the possibility of fixation to the transport device
  • large input port with the possibility of connection of support respiratory equipment
  • Filters are located outside the Bio-bag and can be replaced. They are placed safely out of reach of the transported patient
  • inlet ports for routing infusion tubing, drains, and ECG electrode cables
  • padded back pad for bigger patient comfort
  • possibility of decontamination and repeated use
  • increased opening surface of the hermetic zipper makes it easier to open and close the bag
  • easy maintenance

Technical parameters:
Dimensions: 203 x 64 x 56 cm (l x w x h)
Dimensions in the folded state: 98 x 22 x 60 cm (l x w x h)
Weight including the transport bag: 21 kg



Bio-bag EBV-30/40 IN/CH

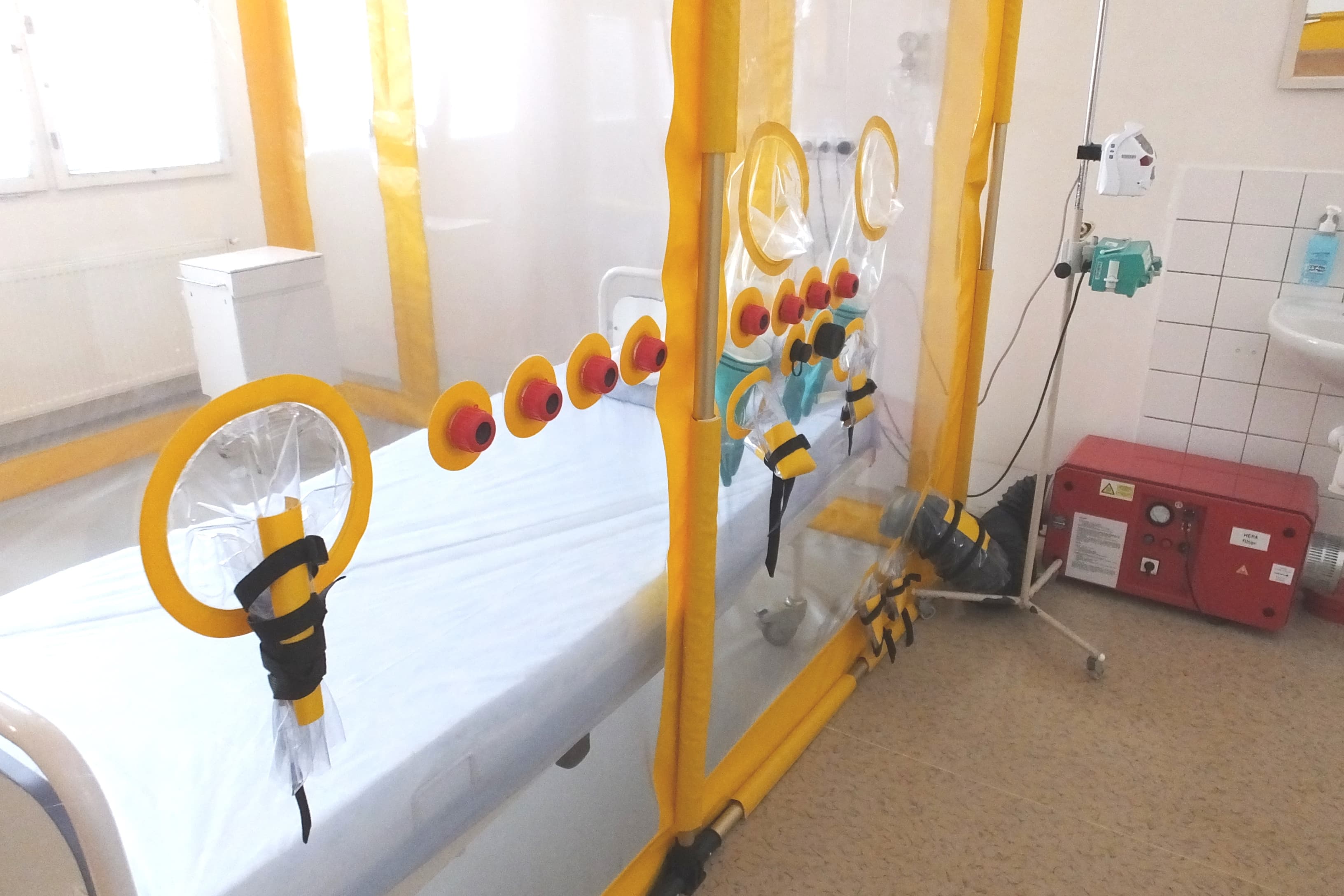

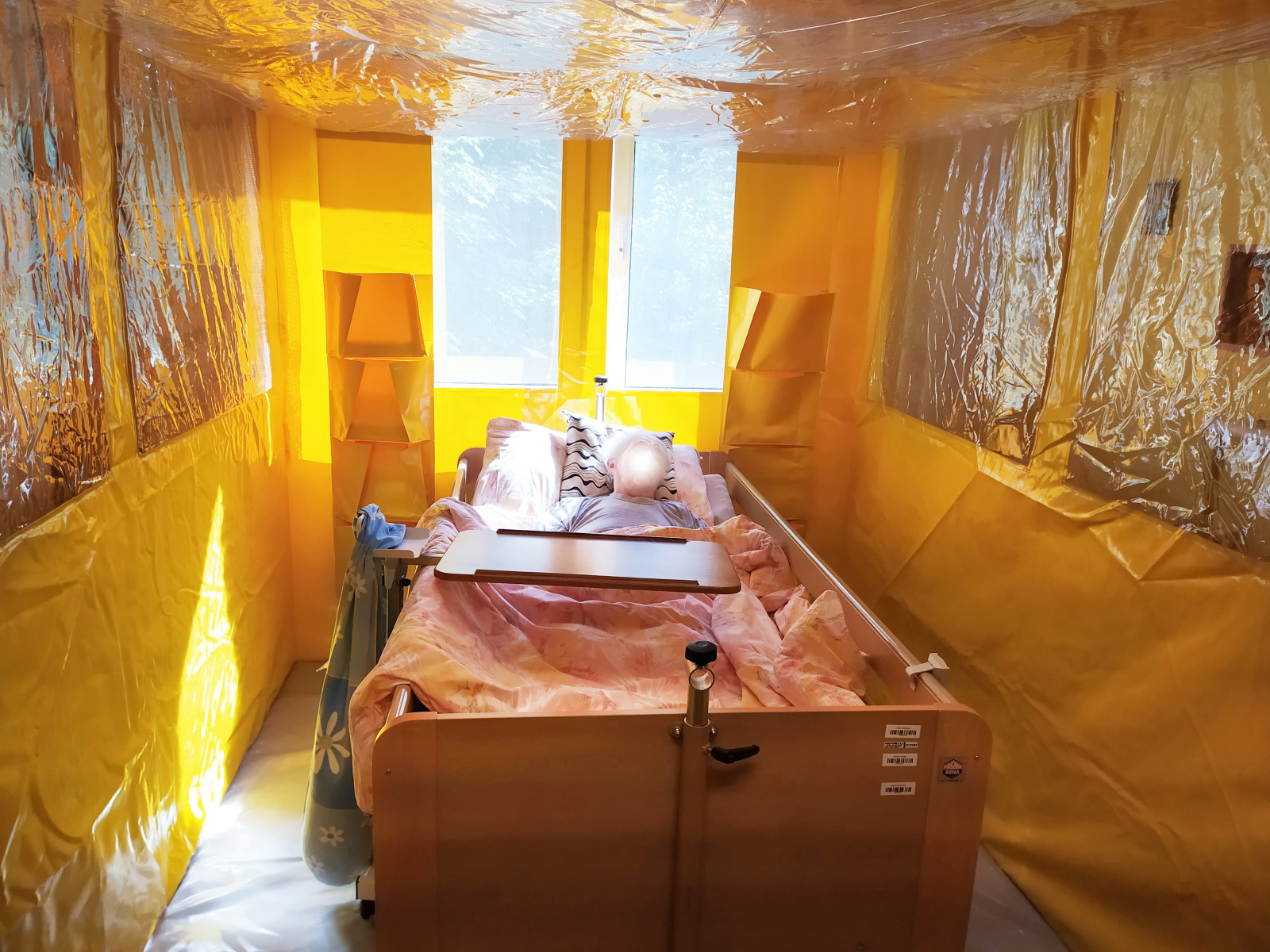

Stationary device for long-term hospitalization and isolation Biobox EBX

The Biobox is an isolation chamber designed for safe isolation of persons infected with highly contagious disease or persons affected by biological agents and microorganisms. The device is used to protect the outer environment and persons from infected or contaminated patients or things placed inside the chamber. The isolation chamber allows care for the patient in order to prevent contamination of the devices and infecting the staff. Monitoring devices, infusion stands, patient ventilation devices, etc. can be placed outside the chamber and are brought through the chamber wall by special hermetic inlets.
Filter-ventilation unit is connected to the wall of the isolation chamber and ensures the best available biological protection.
The filter-ventilation unit removes the contaminated air by suction from inside the isolation chamber; it conducts filtered, clean air away of the isolation chamber through HEPA filters.
This creates conditions for the stay of infected persons and the movement of nursing staff without the need to use individual means of protection.
The Biobox provides BSL-3 standard level of protection.
The Biobox is designed for use inside buildings and structures as the internal isolation chamber, or for use inside air-conditioned and heated tents. The maintenance-free tube construction makes it possible to keep the Biobox in a serviceable condition for a long time.

Technical parameters*:
External assembly dimensions: 4,84 x 2,1 x 2,2 m (l x w x h)
Weight of assembly: 70 kg
*... technical parameters are indicative. The construction of the Biobox is always designed for the given building layout.
Necessary accessories:

  • filter-ventilation unit including filters

Optional accessories:

  • Decontbox, water distribution
Stationary device for long-term hospitalization and isolation Biobox EBX

Mobile device for long-term hospitalization and isolation Biobox EBXT

The Biobox is an isolation chamber designed for safe isolation of persons infected with highly contagious disease or persons affected by biological agents and microorganisms. The device is used to protect the external environment and persons from infected or contaminated patients, or things placed inside the chamber. The isolation chamber allows care for the patient in order to prevent contamination of the devices and infecting the staff. Monitoring devices, infusion stands, patient ventilation devices, etc. can be placed outside the chamber and are brought through the chamber wall by special hermetic inlets.
Filter-ventilation unit is connected to the wall of the isolation chamber and ensures the best available biological protection.
The filter-ventilation unit removes the contaminated air by suction from inside the isolation chamber; it conducts filtered, clean air away of the isolation chamber through HEPA filters.
This creates conditions for the stay of infected persons and the movement of nursing staff without the need to use individual means of protection.
The Biobox provides BSL-3 standard level of protection.
The Biobox is designed on the inflatable tubular construction, enabling great mobility of the construction. The whole system can be easily commissioned within 15 minutes.

Technical parameters:
External assembly dimensions: 5,35 x 2,5 x 2,45 m (l x w x h)
Weight of assembly: 103 kg
Necessary accessories:

  • filter-ventilation unit including filters

Optional accessories:

  • Decontbox, water distribution
  • Compressor for inflation
Mobile device for long-term hospitalization and isolation  Biobox EBXT

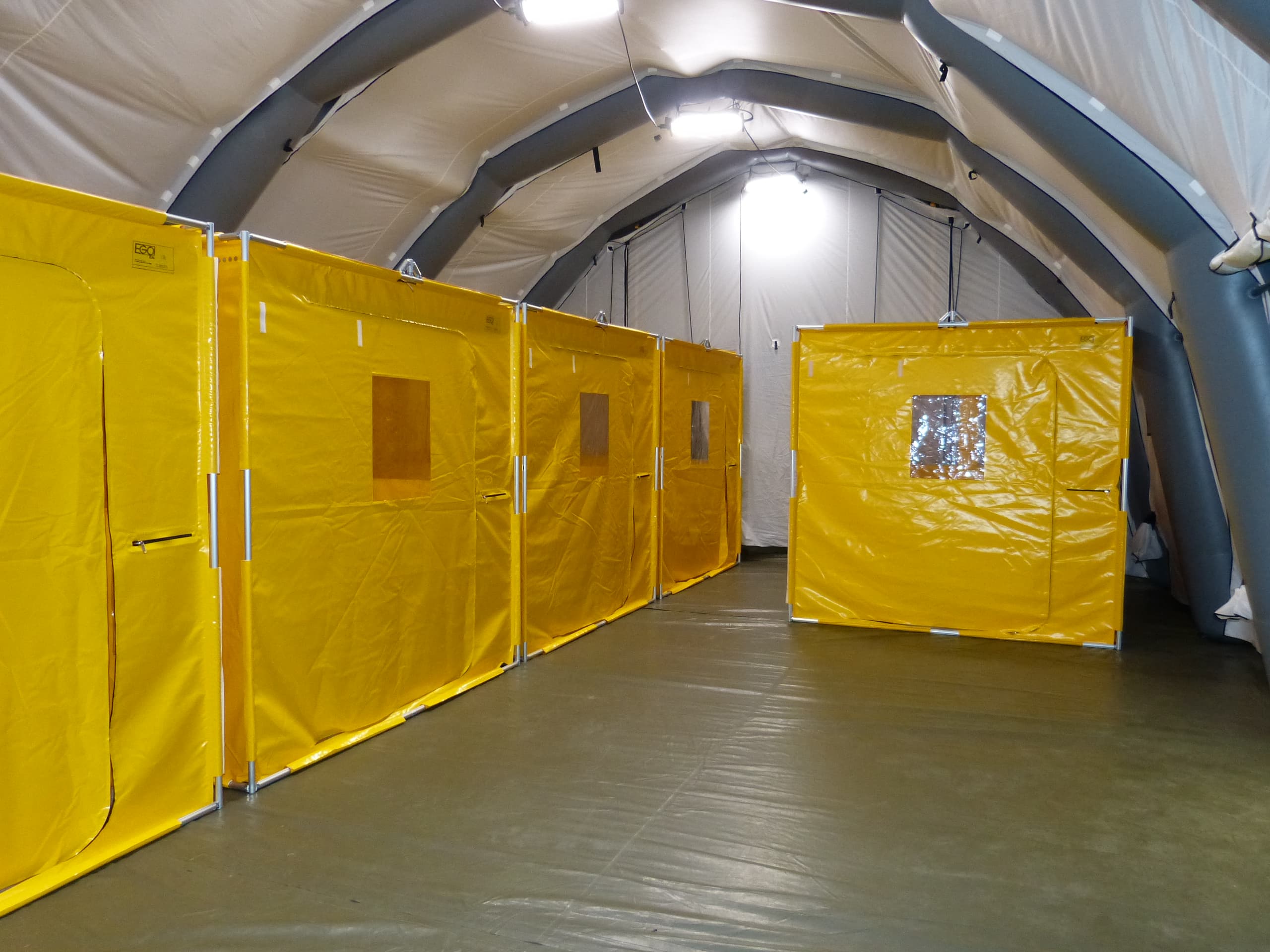

Mobile isolation workplace for long-term hospitalization and isolation (Tent+ Biobox) ES-56 EBXT

The mobile infectious workplace for long-term hospitalization and isolation consists of an inflatable tent ES-56 and a Biobox on tube construction EBXT-06. The Biobox is placed in the tent, which is divided into two separate parts. A great benefit for use in the field is quick installation directly at the area. The created workplace enables the isolation of patients with suspected highly contagious disease while ensuring the safety of intervening staff.

Technical parameters:
External tent dimensions: 10 × 6 × 3 m (l x w x h)
Internal tent dimensions: 10 x 5.4 x 2.7 m (l x w x h)
Usable working area: 56 m2
Weight: 275 kg
Compressor inflation time: 4 minutes (by compressor).



Mobile isolation workplace for long-term hospitalization and isolation (Tent+ Biobox) ES-56 EBXT

EITR-10 Insulator on tube construction

The Insulator is intended for urgent and safe isolation of a patient suspected of a highly contagious disease. It is designed for immediate use and is partly made of a transparent foil, which enables monitoring of the patient during his/her isolation.

  • its design solution allows easy handling of the patient placed in the Bio-bag EBV-30/40
  • designed on the principle of a closed cabin on a metal tube construction, enabling negative pressure mode using filter-ventilation unit with filtration efficiency of ≥ 99.95%
  • commissioning time is approx. 1 hour
  • possibility to place a hospital bed and other accessories in the Insulator
  • simple activation enables the creation of isolation (quarantine) space anytime and anywhere
  • the surface and floor is impermeable to water and everything is easily disinfected
  • optimized dimensions allows the connection of decontamination showers
  • the set includes a filter-ventilation unit, filters and a transport bag

Technical parameters:
External dimensions of assembly: 2,8 x 2,2 x 2,2 m (l x w x h)
Dimensions in the folded state: 0,6 x 0,6 x 0,3 m
Weight: 60 kg



EITR-10 Insulator on tube construction

EI-10 Insulator on inflatable tubular construction

The Insulator, so called "waiting room", is used for urgent isolation of a patient suspected of a highly contagious disease. It is designed for immediate use and characterized by very easy manipulation and quick access to operating mode. Thanks to the transparent foil, it enables visual monitoring of the patient during his/her isolation.
The Insulator is used at school facilities, airports, emergency admissions, etc.

  • its design solution does enable easy handling of the patient placed in the Bio-bag EBV-30/40
  • designed on the principle of inflatable tubular construction, negative pressure mode using 2 pcs of filter-ventilation unit
  • inflation by a compressor
  • commissioning time is approx. 3 min
  • possibility to place a hospital bed and other accessories in the Insulator
  • thanks to the inflatable construction and easy activation, it enables the creation of isolation space anytime and anywhere
  • waterproof and easy to wash surface
  • dimensionally designed to allow the connection of decontamination showers
  • the Insulator is supplied in a transport bag together with filter-ventilation units (2 pcs), filters (2 pcs) and the compressor

Technical parameters:
Dimensions: 2,9 x 2,4 x 2,25 m (l x w x h)
Dimensions in the folded state: 0,6 x 0,6 x 0,3 m
Weight: 45 kg



EI-10 Insulator on inflatable tubular construction

ES-56-MOC Sampling centre

The centre is used to collect biological material or as a vaccination centre during epidemics. The centre was designed in collaboration with field workers and tested during the COVID-19 pandemic. The centre significantly improves the safety of patients and staff. Thanks to the spatial arrangement and the possibility of heating, it ensures great working conditions for the staff even during long shifts.
The advantage is the quick commissioning (inflation in a few minutes), easy decontamination of the premises, and the possibility of dividing the space into separate sections.

Technical parameters:
External dimensions of the tent: 10,0 x 6,0 x 3,0 m (l x w x h)
Internal dimensions of the tent: 10,0 x 5,4 x 2,7 m (l x w x h)
Dimensions in packed state:  1,4 x 1,4 x 0,9 m (l x w x h)
Weight: 220 kg
Inflation time: 4 min



ES-56-MOC Sampling centre
